20/30/40ft Expandable Container House Camouflage Mini Home Tiny Homes Ready to Ship Made of Steel Sandwich Panel for Outdoor Use



Option size Smaller: W4820*L5900*H2480 mm
20ft: W6320*L5900*H2480 mm
30ft: W6240*L9000*H2480 mm
40ft: W6240*L11800*H2480 mm
Main material Galvanized steel structure with sandwich wall panel and doors, windows, etc.
Weight 2000-5500 kgs
Service life 30-40 years
Color White, blue, grey, brown, customized color, or adding colorful cladding
Steel structure 2.5 mm hot galvanized steel structure with 4mm corner casts and in the middle and 15mm laminate board on both sides;
(1) Floor: 18mm MgO board
(2) Adding 2mm PVC flooring;
(3) 75mm rock wool ,eps sandwich panel
(4) Galvanized steel base plate.
Columns 2.5 mm hot galvanized steel structure
Wall 75mm EPS/rock woll sandwich panel, or customized PU sandwich panel
Roof 3-4mm Hot galvanized steel structure with 4 corner casts and(1) Galvanized steel roof covering;
(2) 50mm eps sandwich panel sandwich panel.
Door (1) Steel door (2) Aluminum double glass door
(3) Cut-bridge aluminum double glass door
Window 920*920mm, double glass (1) Plastic steel window (2) Aluminum double glass window (3) Cut-bridge aluminum double glass window
Connection kits PVC Connection kits for ceiling, floor and walls.
Electricity 3C/CE/CL/SAA Standard,with breaker, lights, switch, sockets, etc.

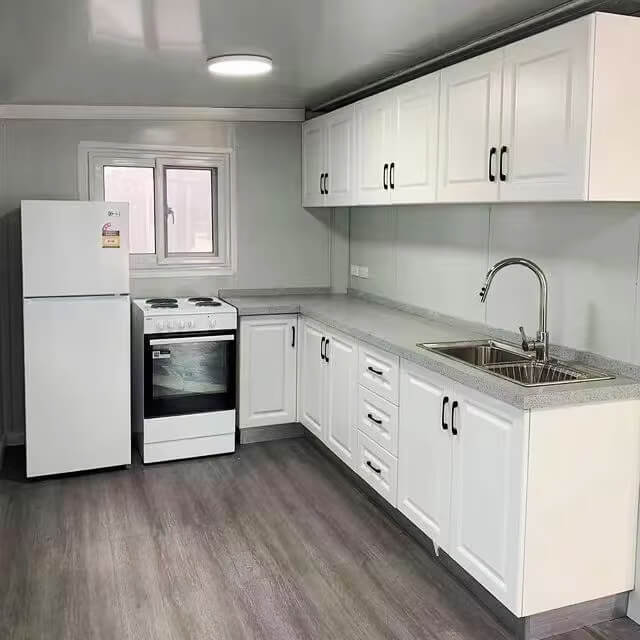

Optional Accessories Furniture, kitchen (including cabinet and sink, bathroom (including toilet, washing basin, mirror, shower room), electrical
appliance, roof, terrace, decorative material, etc.
Advantage (1) Fast installation: 2 hours/set, save labor cost; (2) Anti-rust: all material use hot glavanized steel;
(3) Waterproof structural waterproof design;
(4) Fireproof: fire rating A grade;
(5) Simple foundation;
(6) Wind-resistant(10 grade) and anti-seismic(10 grade)
(7) Pre-installed
(8) Suitable for living

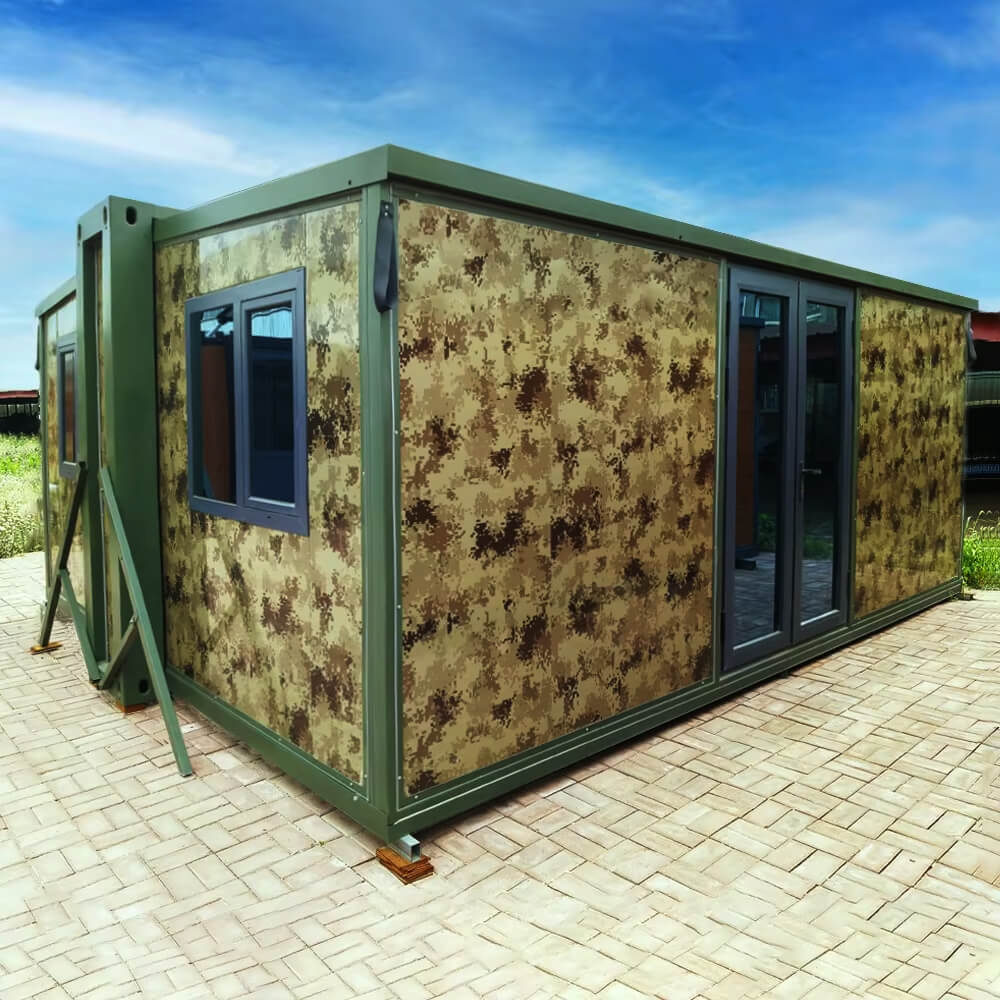

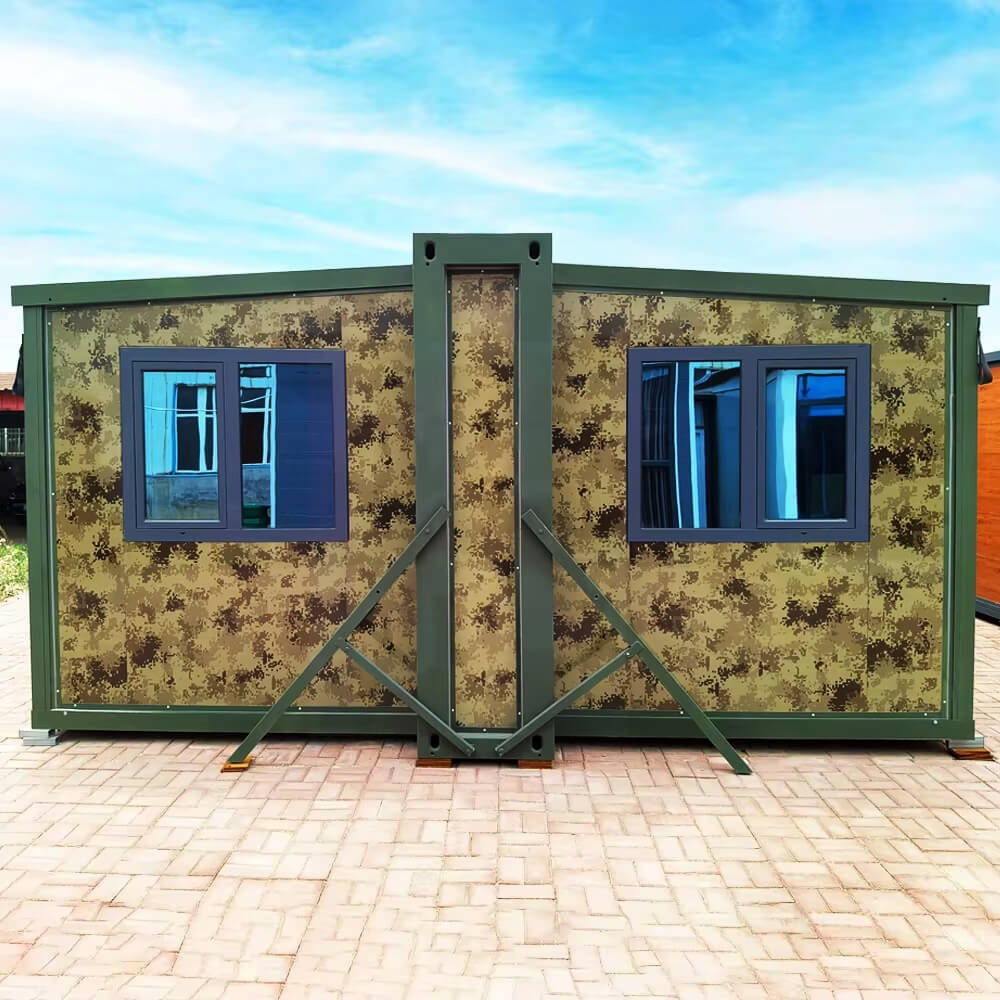

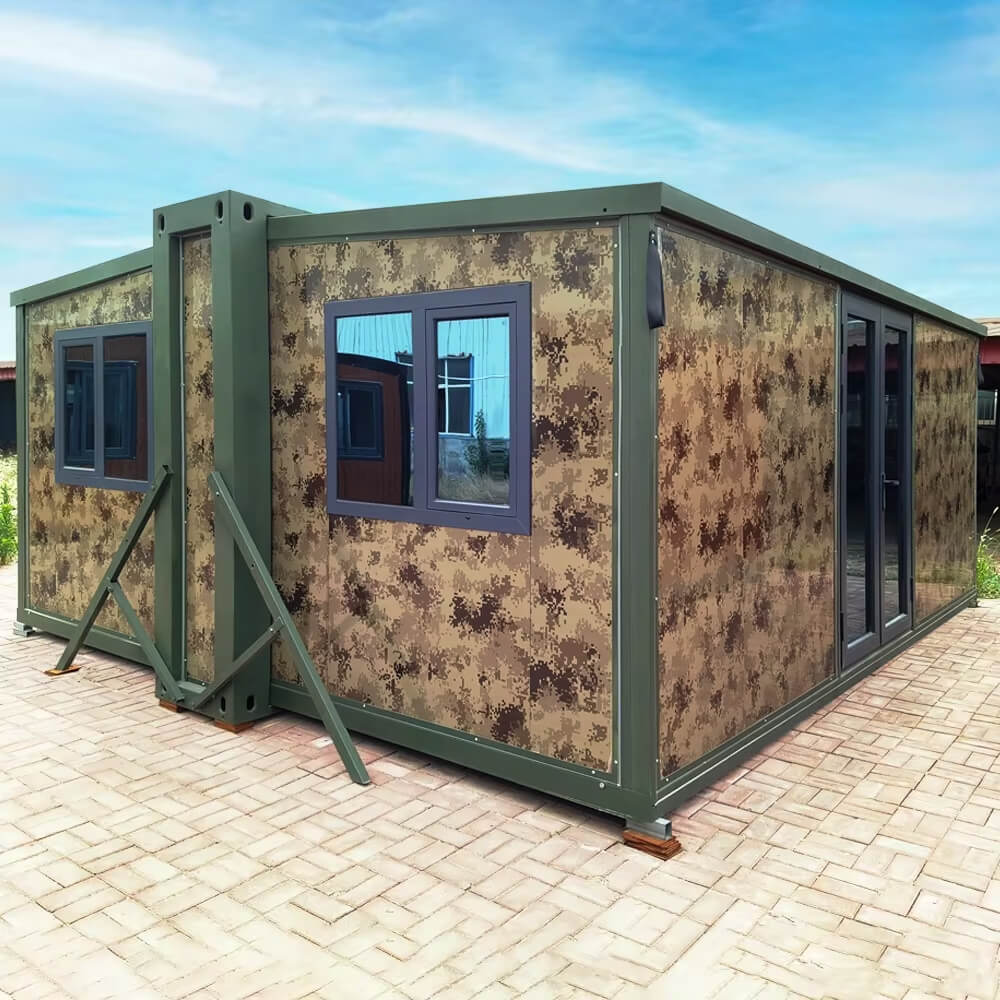

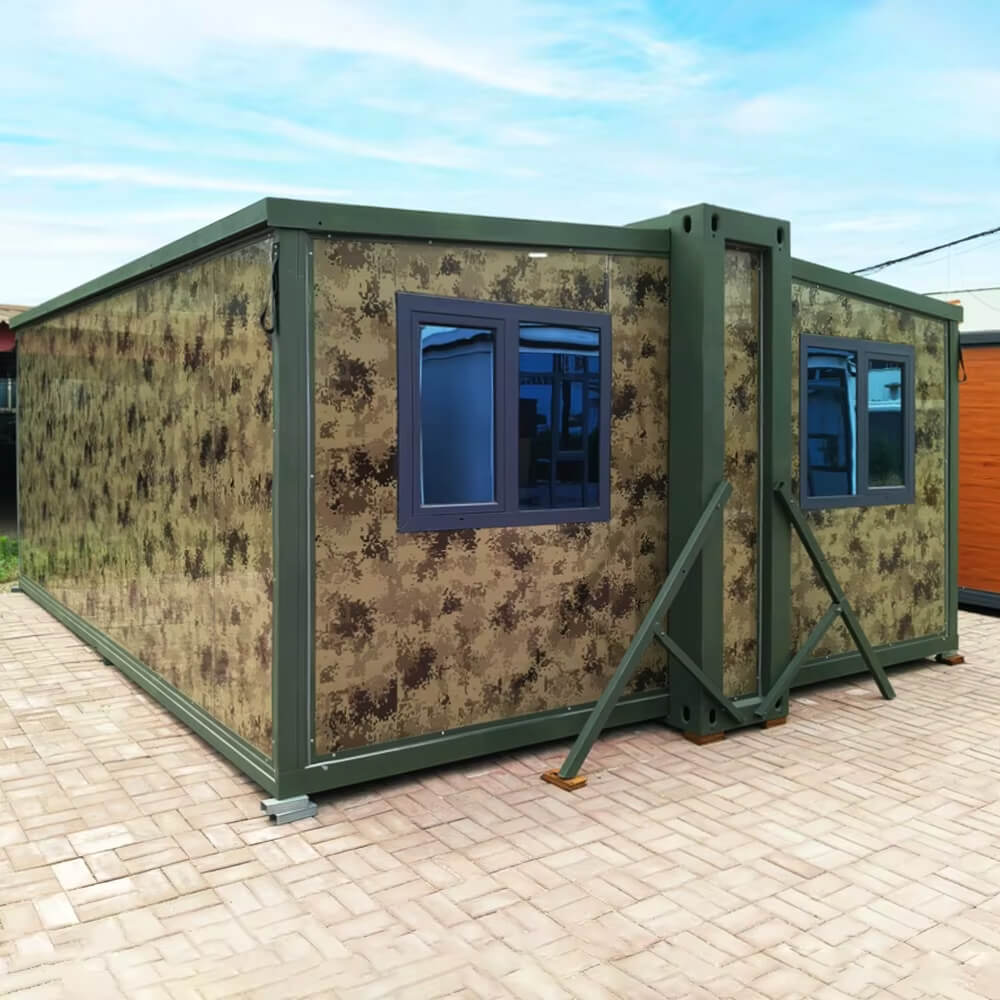

Camouflage Appearance:

Features camouflage paintwork for enhanced concealment, suitable for military, wilderness, and other environments requiring high blending capabilities.

Modular Expansion Design:

Utilizes an expandable container module structure that compresses for transport and rapidly assembles on-site to increase usable area.

Prefabricated Integrated System:

Factory-integrated utilities including water, electricity, and insulation enable immediate deployment without extensive on-site construction.

Multi-Window Daylighting:

Equipped with multiple windows to ensure ample natural illumination, enhancing spatial openness and comfort.

Glass Door Interaction:

Features glass doors that optimize daylighting while facilitating personnel access, strengthening visual and spatial connectivity between interior and exterior spaces.

Military Temporary Barracks:

Serves as temporary housing for field training and exercises, accommodating lodging and office needs.

Field Operations Support Space:

Suitable for oil, mining, and other outdoor operations as worker dormitories, temporary offices, or rest areas.

Emergency Disaster Relief Shelter:

Rapidly deployed to disaster zones as temporary shelters providing refuge for affected populations.

Temporary facilities for outdoor programs:

In outdoor adventure bases, campgrounds, and similar settings, they can serve as temporary service centers, equipment rooms, or rest pods.

Mobile and reusable:

The entire structure is mobile and can be relocated as needed. The durable materials allow for repeated disassembly and reassembly, reducing long-term costs.
