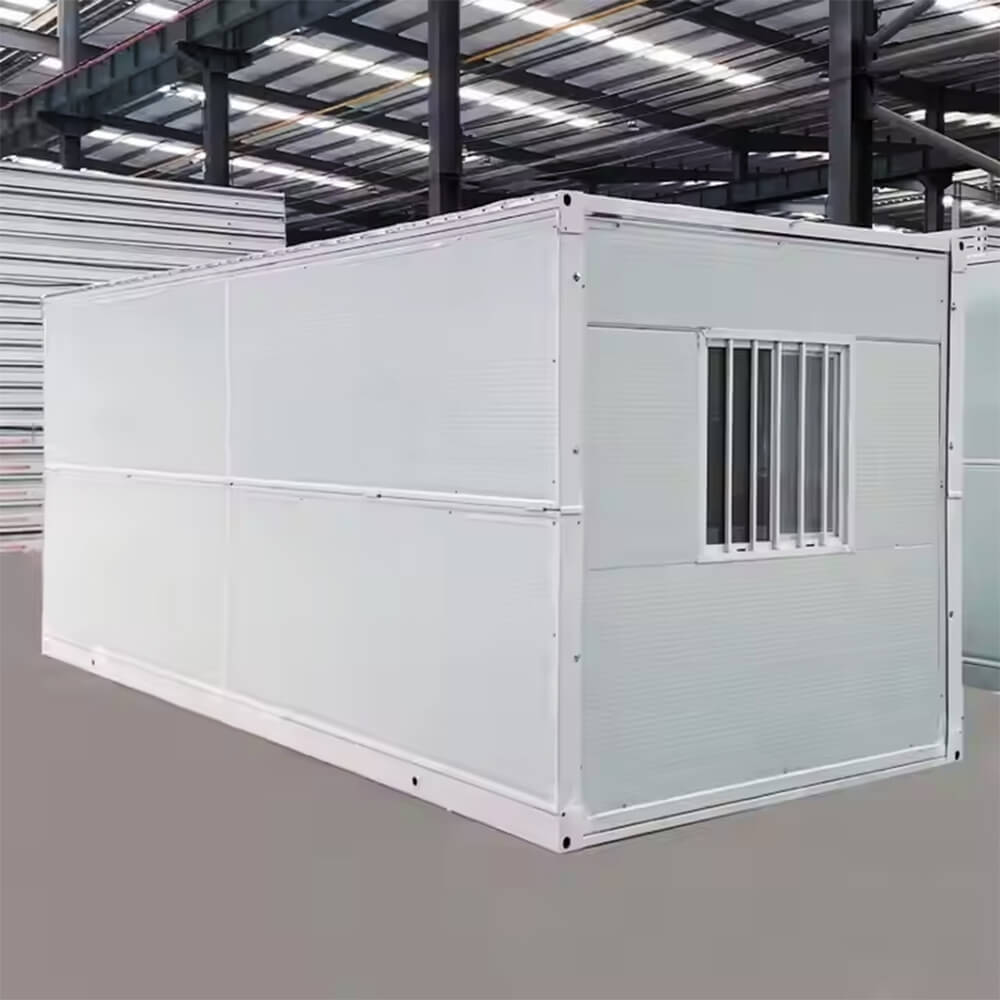

| Basic Characteristics | External dimensions(mm) | 5800L*2440W*2500H |
| Internal dimension(mm) | 5640L*2320W*2400H | |

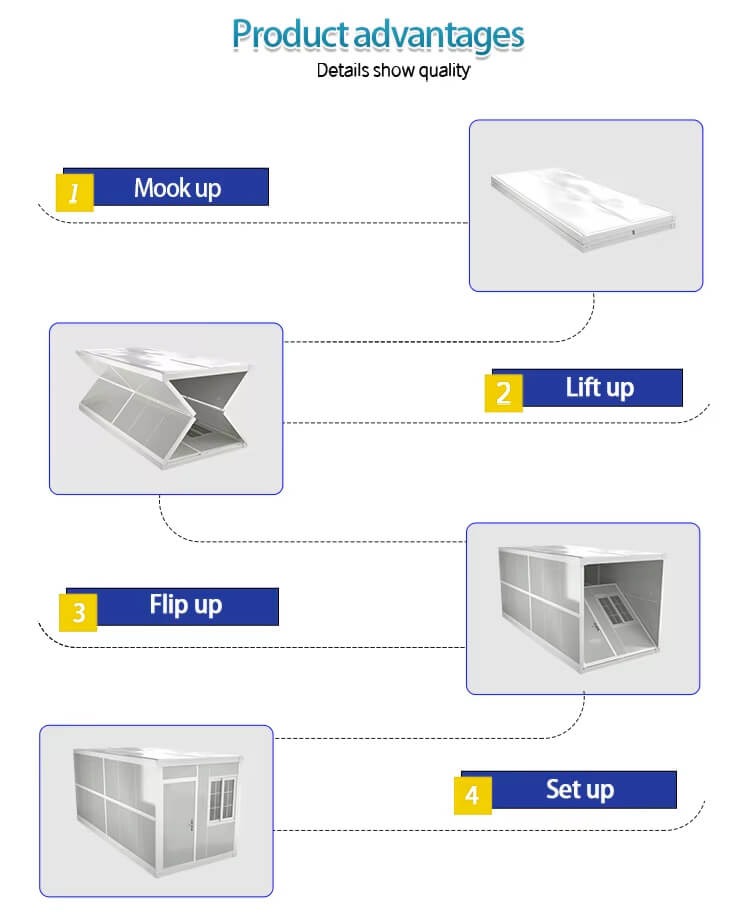

| Folded state (mm) | 5800*2440*400 | |
| Total mass (kg) | 1100 | |
| Frame Structure | Top girder | Q235B Rectangular square tube 60*80*1.3mm |
| Bottom girder | Q235B Rectangular square tube 80*140*1.5mm | |
| Front and rear main beam | Q235B Rectangular square tube 80*80*1.3mm | |
| Side wall frame | Q235B Rectangular square tube 40*80*1.3mm | |
| Bottom load-bearing | Q235B Rectangular square tube 40*40*1.3mm | |
| Top load-bearing | Q235B Rectangular square tube 40*40*1.3mm | |
| Hanging head | Q235B 125*200*(4mm) | |
| Folding hinges | Galvanized hinge 13mm | |
| House Top | Overall Frame Protection Coatings | Electrostatic spray/high-gloss white |
| External top plate | 0.5mm Galvanized sheet | |

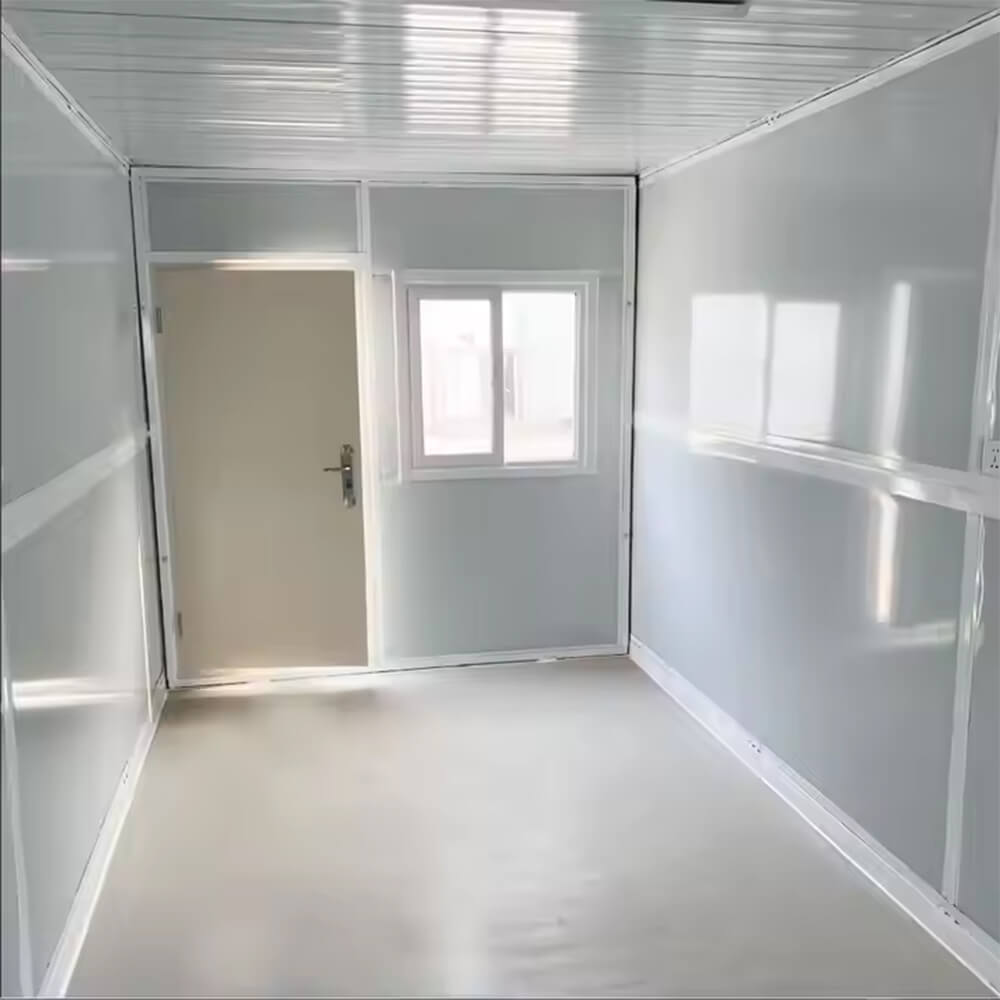

| Internal ceiling | Color steel veneer V930*0.25㎜ | |
| Wall Panel | Insulation glass wool | Glass wool roll 50mm |
| Side wall | 50mm composite board 0.23mm+basalt wool+0.23mm | |
| Front and rear wall panels | 65mm composite board 0.23mm+basalt wool+0.23mm | |
| Floor | Fireproof glass magnesium floor 15mm | |
| Electrical System | Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products must comply | |
| with CE certification. Connect the circuit according to circuit engineering specifications, indoor: 4² national standard soft | ||
| copper wire, 1 20A circuit breaker, 2.5² incoming socket , 1 five-hole single-opening socket, 1 ten-hole socket, 1 air conditioner | ||
| socket, 1 lamp indivual. | ||

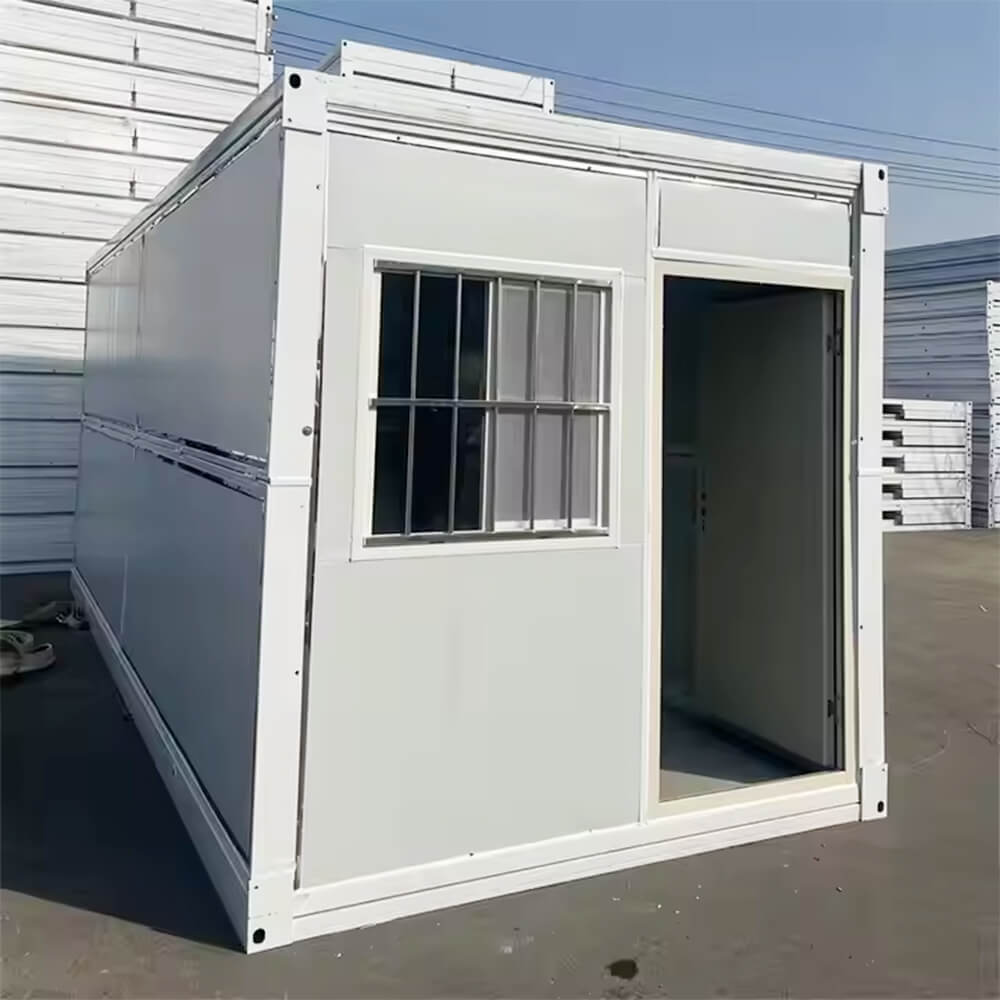

| Security Door | High quality security door (warm white) size: 930mm*1970mm | |
| Window | 930*930 plastic steel anti-theft integrated window, glass thickness 4mm (warm white) | |
| Quality Assured | The whole box as a whole meets the A-level fire protection standard | |
